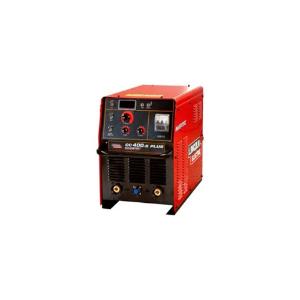

Stick / SMAW Welding Machine Invertec CC 400-S Plus K60060-3

Untuk Mengelas Logam

Realibility - Flexibility The designed for realibility and durability with excellent arc characteristics. Advanced can work as a touch start TIG welder. High duty cycle make it possible for welding with various sizes of electrodes. Built IP23 Classification, ensure it can work uder harsh working environment. The inverter technology is used in design of this machine and provides the high level of efficiency and power factor which reduce the electricity and the cost of production during welding. It is designed with hot start and arc force adjustment control. Perfect function makes it have excellent flexibility for welding. This machine is an ideal choice for field work such for generator and can work with cellulose electrode. Processes: • DC Stick, Touch Start TIG Description: • Output: CC / DC • Input: 3 Phase 50/60 Hz Accessories: • Electrode cable with holder, Work cable with clamp • K60076-50-3M Work cable with Clamp • K60077-50-3M Electrode cable with holder Advantage • High current range - 400 amp, enable it can work with 6 mm electrode. • This machine is installed with output choke and can weld cellulose electrode at vertical down. • Adjustable hot start and arc force. • Touch Start TIG makes it easy to achieve great arc start with minimal or no tungsten contamination. • Extended cable up to 100 m (350 A, 70 mm² size) is suitable for long distance welding. • Convenient operation interface with digital amp and volt meter. • Overheating detection and fault alarm function. • Remote control system enables in this machine to control the output current remotely. • Built to IP23 classification, ensure reliability in harsh and demanding enviromental conditions. Technical Specifications Input power: 380 V - 415 V (±10%) / 3Ph / 50Hz / 60 Hz Rated Output Current/Voltage/Duty Cycle: 400A / 36V / 60% | 310A / 32.4V / 100% Input Power @ Rated Output (KW): 17 @ 60% Output Range: 10-400A | 20.4 -36V Dimensions (H x W x D) (mm): 480 x 350 x 730 Net Weight (Kg): 36 Design Features • Long life electrolytic capacitors are specially chosen for the machine design. • Amorphous core technology reduces the whole machine's greatly. • Designed with separated low voltage control PCB from high voltage precharge PCB, can reduce service cost. • PCB potting process and vertical mounting reduces the failure rate. • High reliable fan motor makes machine get enough air for cooling. • Connected by MOLEX, which ensures the realibility of electrical connection. • All of output line with short circuit protection, it can reduce the trouble caused by short circuit. Mode Specifications • Standard Electrode Mode • Cellulose Electrode Mode • Touch Start TIG Mode • Remote Output Mode • Hot Start Mode • Arc Force Mode • Generator Application Mode Rugged Reliability All welding equipment, during development this machine were tested sereve conditions to ensure proper operation in the harshest environment: • Extreme Temperature Range • Extreme Humidity • Rain • Disrty and Dust • IP23 Rate Performance
